Energy Cube
3 / 30 / 30,000
The Energy Cube's AMCs are engineered to deliver up to 3 cycles per day over a 30-year design life, equivalent to approximately 30,000 cycles in normal running conditions.
Compact DC Block

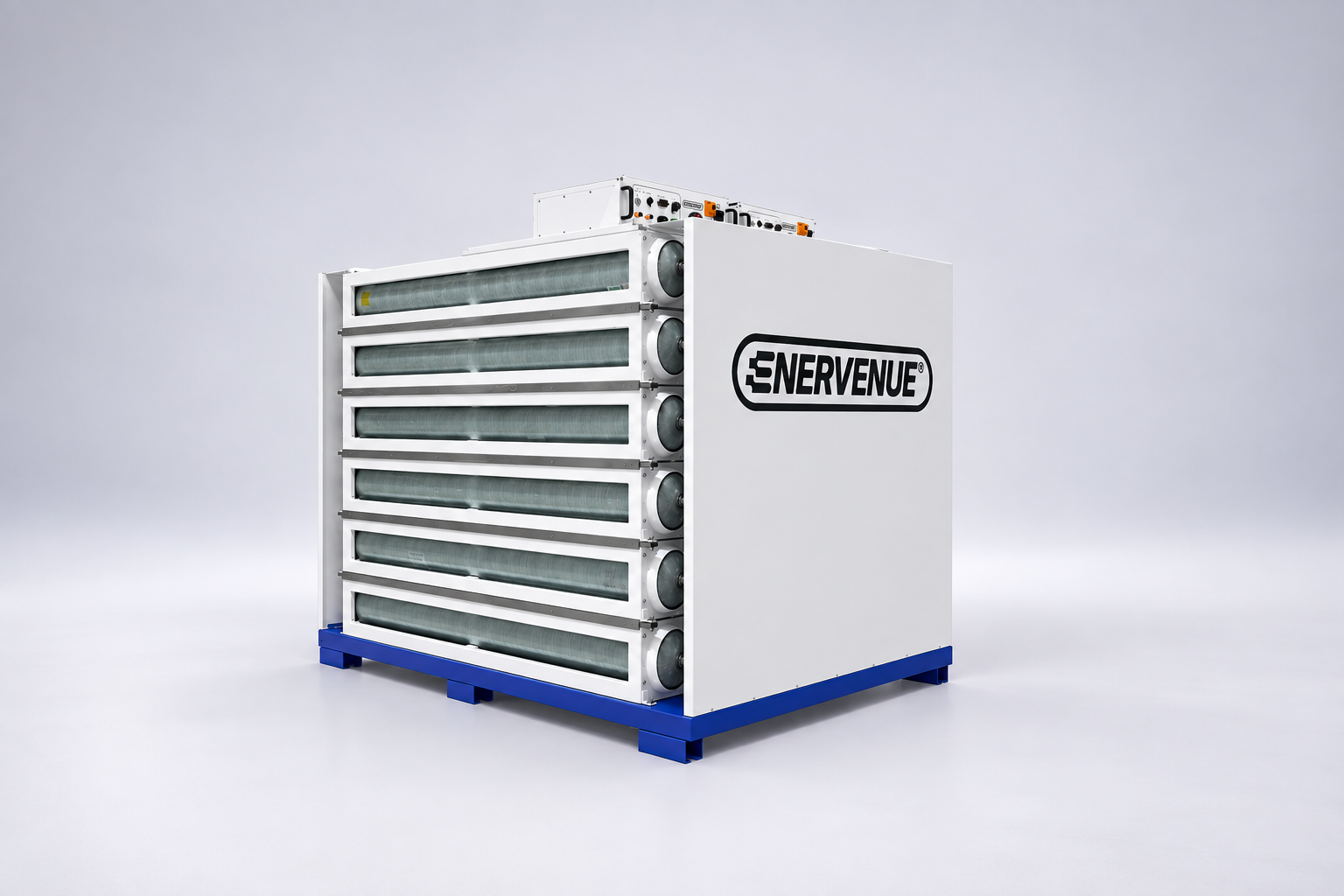

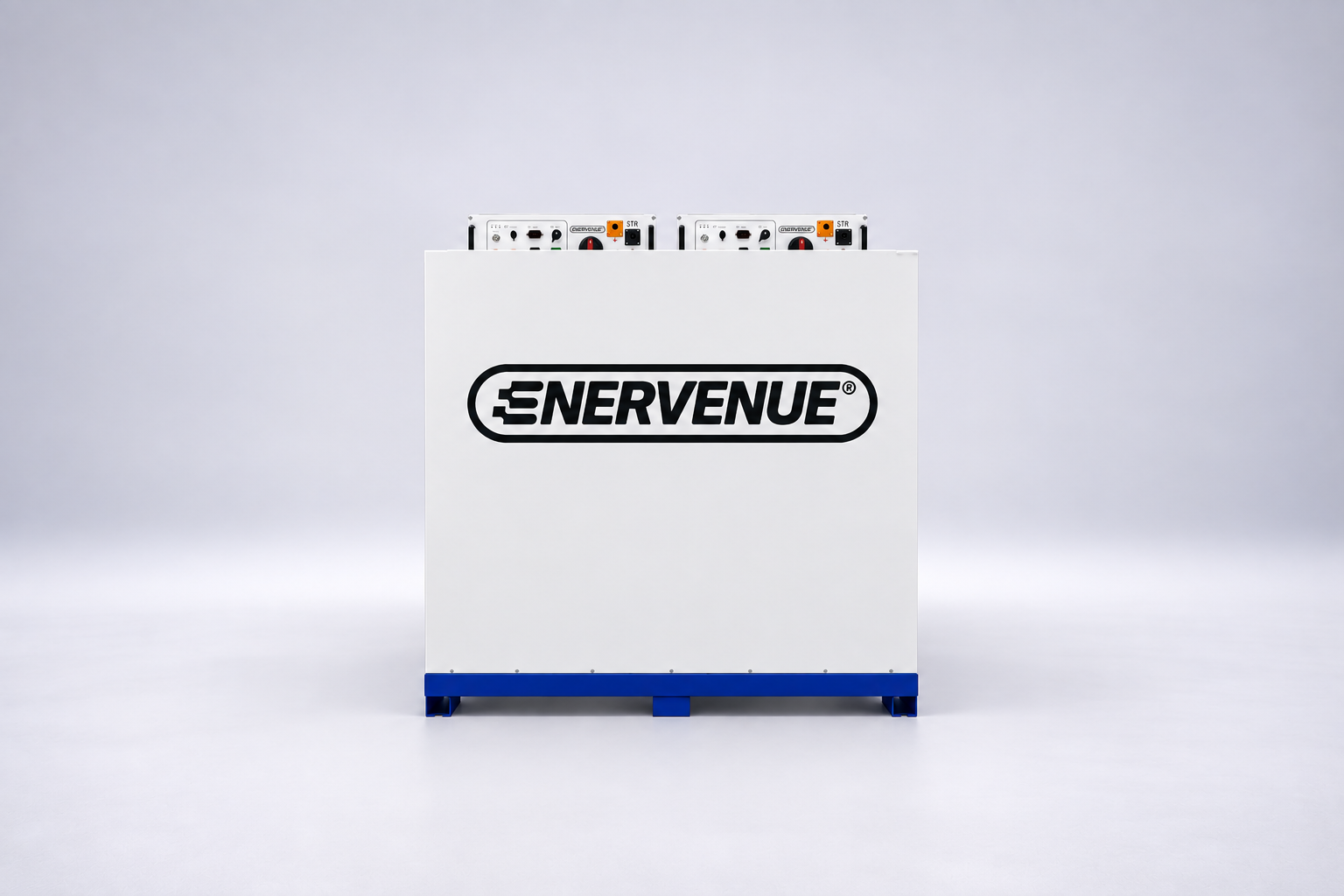

The Energy Cube is a backup power solution for UPS systems in data centers, specifically for use in indoor areas. The Cube protects critical infrastructure from power loss.
The AMC technology allows siting near telecoms infrastructure and equipment due to the zero risk of fire from thermal runaway. This EnerVenue solution replaces lead-acid batteries in UPS systems. No cooling requirements resulting in zero auxiliary consumption.
108 kWh. NO FIRE SUPPRESSION. NO COMPLEX THERMAL MANAGEMENT.
108 kWh
Usable Capacity
A single-cabinet DC block at 432V. Pre-integrated AMC, BMS, and wiring - compact and site-ready.
Zero
Fire Suppression
AMC chemistry eliminates fire suppression systems entirely - reducing cost, complexity, and permitting time.
30,000
Cycle Life
AMCs engineered for up to 3 cycles per day over a 30-year design life - approximately 30,000 total cycles.
Not Required
Thermal Management
Natural air cooling. No HVAC, no chillers, no unnecessary points of failure.
Specifications
Energy Cube - Technical Specifications
DESCRIPTION
SPECIFICATION
Dimensions (W × D × H)
1390 × 2160 × 1587 mm
Total Designed Weight
3,200 kg ± 5%
System Voltage Range
387V – 522V
Working Altitude
≤ 2000 m
Rated Voltage
432V DC
Protection Class
IP20
Rate
C/24 ~ 1.4C
Rated Capacity
108 kWh
Cooling Method
Natural air cooling
Working Humidity
≤ 95%
Battery Topology
18S2P
Communication Method
TCP/Modbus
Temperature
-10°C to +45°C ; max. temp up to 60°C
BMS
Integrated
Certifications (Cell)
UL 9540A, UL 1973, IEC 63115-2
A battery that can't set itself on fire
Zero risk of fire from thermal runaway
EnerVenue's Aqueous Metal Cell (AMC) chemistry uses a water-based electrolyte and therefore, under abnormal operating conditions, the cell's integrated pressure-relief mechanism safely releases water vapor, leaving zero risk for fire ignition and propagation.
Get Started
Ready to spec your project.
The Energy Cube datasheet includes full electrical, mechanical, and environmental specifications. For project-specific configurations, our team can model your requirements.
