Energy Rack™
150 kWh
%201.avif)
The configurable unit. 150 kWh at 1500 Vdc.
Ships pre-integrated with AMCs, BMS, and all connections. Deploys in indoor structures or outdoor-rated enclosures. Stackable to three rows high. Compatible with 1500 Vdc and 1000 Vdc systems.
150 kWh per rack. Zero augmentation.
150 kWh
Energy Capacity
Per rack, at 1500 Vdc nominal. Pre-integrated and ready to deploy.
30K+
Cycle Life
Expected capacity retention >80% after 30,000 full cycles.
3 High
Stackable
Rack-to-rack stacking up to three rows for maximum density.
Zero
Fire Suppression
Aqueous Metal chemistry requires no fire suppression or complex thermal management.
Specifications
Energy Rack — Technical Specifications
Description
Specification
Dimension (W×D×H)
1,456 x 2,190 x 2,466 mm
Weight
5,000±3% kg
Rated Energy
150 kWh
Nominal Voltage
1,190 Vdc
System Voltage
1,075 – 1,500 Vdc
Maximum Charge/Discharge Rate
0.55C
Operating Temperature
-10°C to 45°C
Storage Temperature
-15°C to 55°C
Auxiliary Input Voltage
200-240 Vac, 50/60 Hz
Maximum Auxiliary Load
1,200 W
IP Ratings
Energy Rack: IP20, RSIIC: IP54
Altitude
≤2,000 m
Seismic Rating
The seismic design intensity is ≥ 8 according to GB 50011 (SDS ≥ 0.24 g, SD1 ≥ 0.16g according to ASCE 7)
Cooling Type
Forced Air
Chemistry
Aqueous Metal (Ni-H2)
Certifications *
UL 9540, UL 9540A, UL 1973, IEC 62933-5-2, IEC 63115-2, IEC 61000-6-2/4, IEC 62477-1
Expected Capacity Retention
>80% after 30,000 cycles
Cycles/day
Up to 3 cycles
Communication Protocol
Modbus TCP/IP
*Some certifications pending. Consult with EnerVenue technical authority for current certifications. All product claims and technical data are subject to change at any time without notice. The customer is responsible for verifying all applicable information at the time an order is placed. All information represented is believed to be accurate, but it is presented without guarantee, warranty, or responsibility of any kind, expressed or implied.

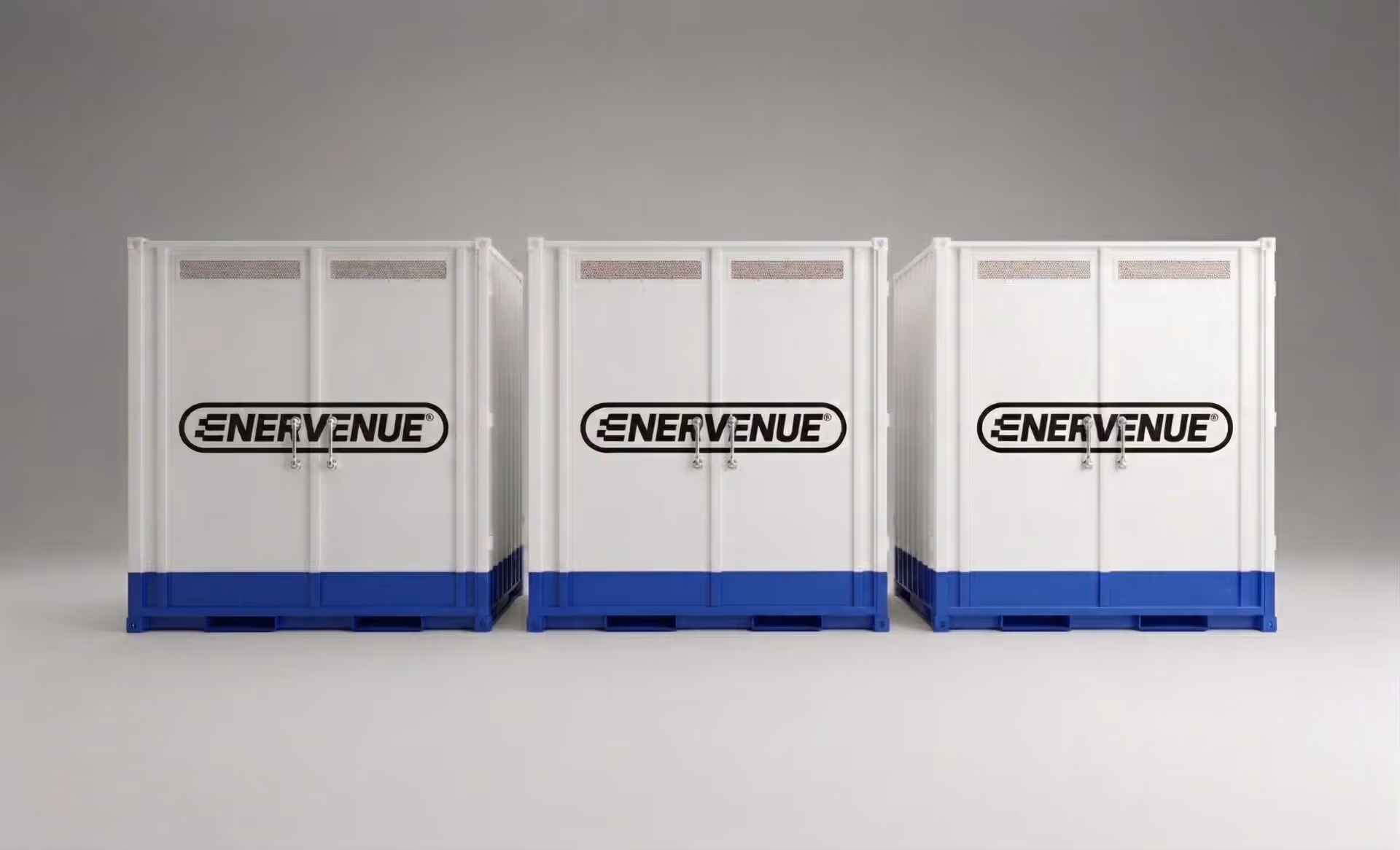

Deployment Flexibility
Indoor or outdoor. Your configuration.
The Energy Rack deploys in indoor structures, purpose-built enclosures, or outdoor-rated containers. Compatible with both 1500 Vdc and 1000 Vdc system architectures. Each rack ships pre-integrated — AMCs, BMS, wiring, and connections included — reducing on-site integration time to hours, not weeks.
Get Started
Ready to spec your project.
The Energy Rack datasheet includes full electrical, mechanical, and environmental specifications. For project-specific configurations, our team can model your requirements.
