3 / 30 / 30,000
Energy Core
The Energy Core's AMCs are engineered to deliver up to 3 cycles per day over a 30-year design life, equivalent to approximately 30,000 cycles in normal running conditions.
Compact DC Block

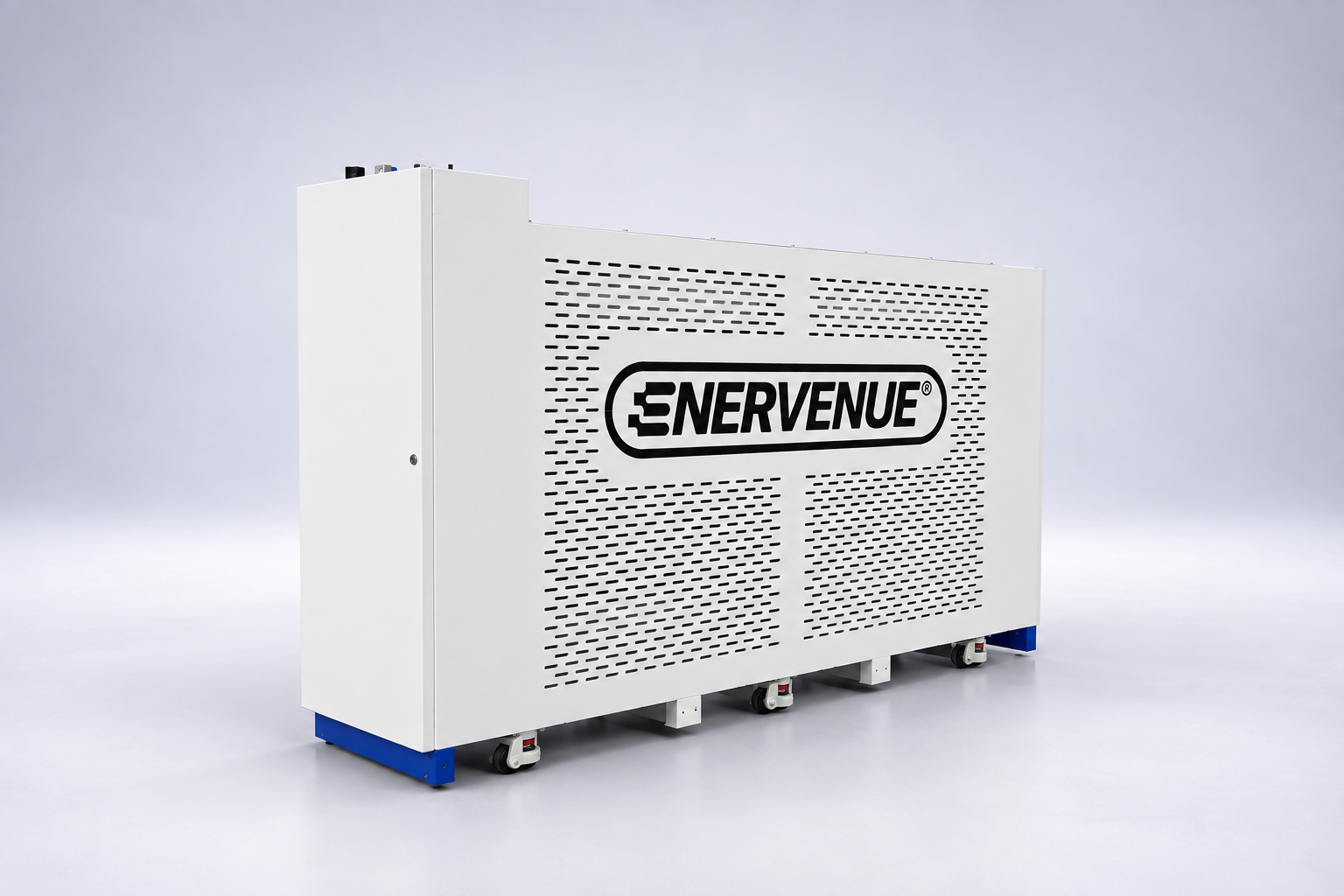

The Energy Core is a backup power solution for the telecom sector, specifically for use in indoor areas. The Core protects critical infrastructure from power loss.
The AMC technology allows siting near telecoms infrastructure and equipment due to the zero risk of fire from thermal runaway. This EnerVenue solution replaces lead-acid batteries in the most efficient and effective way. No cooling requirements resulting in zero auxiliary consumption.
30 kWh. NO FIRE SUPPRESSION. NO COMPLEX THERMAL MANAGEMENT.
30 kWh
Usable Capacity
A single 30 kWh cabinet at 48V DC. Pre-integrated AMC, BMS, and wiring - naturally cooled and site-ready.
Zero
Fire Suppression
AMC chemistry eliminates fire suppression systems entirely - reducing cost, complexity, and permitting time.
30,000
Cycle Life
AMCs engineered for up to 3 cycles per day over a 30-year design life - approximately 30,000 total cycles.
Not Required
Thermal Management
Natural air cooling. No HVAC, no chillers, no unnecessary points of failure.
Specifications
Energy Core - Technical Specifications
DESCRIPTION
SPECIFICATION
Dimensions (W × D × H)
550 × 2360 × 1400 mm
Total Designed Weight
1000 kg ± 5%
System Voltage Range
43V – 58V
Working Altitude
≤ 2000 m
Rated Voltage
48V DC
Protection Class
IP20
Rate
C/24 ~ 1.4C
Rated Capacity
30 kWh
Cooling Method
Natural air cooling
Working Humidity
≤ 95 %
Battery Topology
2S5P
Communication Method
TCP/Modbus
Temperature
-10°C to ~ +45°C ; max. temp up to 60°C
BMS
Integrated
Certifications (Cell)
UL 9540A, UL 1973, IEC 63115-2
A battery that can't set itself on fire
Zero risk of fire from thermal runaway.
EnerVenue's Aqueous Metal Cell (AMC) chemistry uses a water-based electrolyte and therefore, under abnormal operating conditions, the cell's integrated pressure-relief mechanism safely releases water vapor, leaving zero risk for fire ignition and propagation.
Get Started
Ready to spec your project.
The Energy Core datasheet includes full electrical, mechanical, and environmental specifications. For project-specific configurations, our team can model your requirements.
